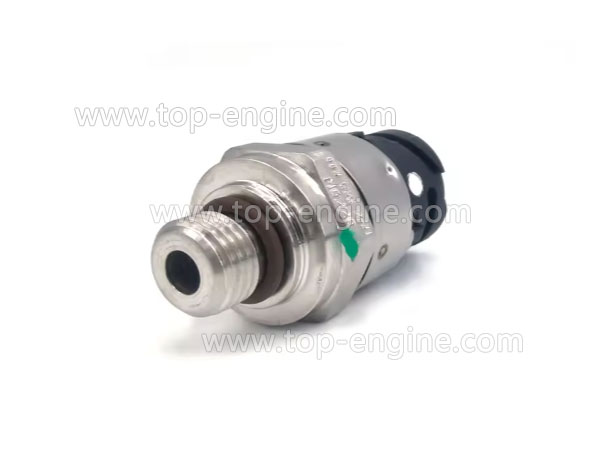

0035352531 - MTU Pressure Sensor

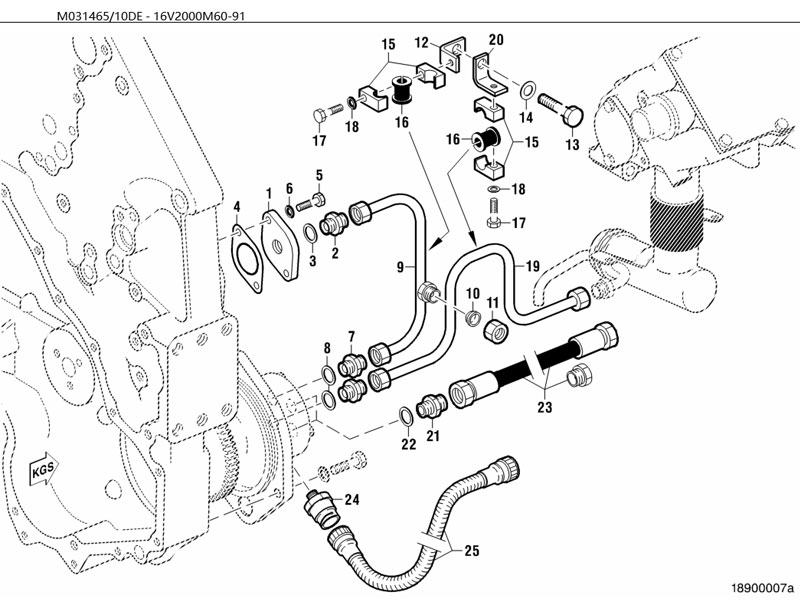

List of Parts Related to 0035352531

Pos.	Description	Sup.Desig.	Order No.	Qty	Dimension	Typ	Remarks
1	COVER		5360180311	001		12/16V2000M
2	UNION		915006010002	001	10
3	SEALING RING		007603018101	001	A 18 X 22		7603018101
4	GASKET		5592032580	001
5	SCREW		304017008079	002	M 8 X 20
6	WASHER		000125008427	002	A 8,4		125008427
7	UNION		915006010002	002	10
8	SEALING RING		007603018101	002	A 18 X 22		7603018101
9	OIL LINE	FUER OELNIVEA UPUMPE	005361803519	001		12/16V2000MARINE
10	SEALING CONE		915005010000	001	12
11	NUT		915001010004	001	10 M 18 X 1,5
12	RETAINER		5801533240	001
13	SCREW		000933012054	003	M 12 X 25		933012054
14	WASHER		000125013012	003	A 13		125013012
15	PIPE HALF-CLAMP		700325018100	006	1/1 D 9 - 18
16	GROMMET		700327018000	003	18
17	SCREW		304017008085	003	M 8 X 40
18	WASHER		000125008427	003	A 8,4		125008427
19	OIL LINE	FUER OELNIVEA UPUMPE	005361803619	001		16V2000MARINE
20	RETAINER		5801533240	002
21	UNION		915013013002	002	13
22	SEALING RING		007603018101	002	A 18 X 22		7603018101
23	HOSE		735038012105	002	1ST 12 CC 500

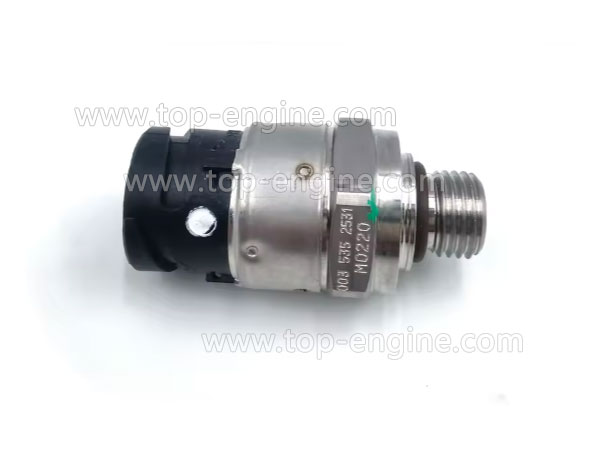

24	PRESSURE SENSOR		000035352531	001	M14X1,5;SW=27;0-10BAR_ RELATIV;	10 BAR REL	35352531
25	WIRING HARNESS	MIT STECKER	005005301926	001	L= 0,6M, EINSEITIG GEW INKELT	0,6M

0035352531 – MTU Pressure Sensor
