5582040406 – MTU396 IMPELLER
| Engine Type : | MTU396, 956 |
| Part Number : | 5582040406 |
| Description : | IMPELLER |
| Unit Weight(KGM) : | 1.836 |
| HS Code : | 8413910000 |
| Condition : | New |
| Manufacturer : | Original |
5582040406 – MTU 396, 956 IMPELLER Superseded Part and Effective Date:
| New Part Number | Superseded Part Number | Seq no | Hierarchie | Valid From Date |
| 5582040406 | 5582040006 | 0001 | Superseded | |
| 5582040406 | 5582040106 | 0002 | Superseded | 1991/4/1 |
| 5582040406 | 5582040306 | 0003 | Superseded | 1991/5/1 |
| 5582040406 | 5582040406 | 0004 | New | 1991/6/1 |

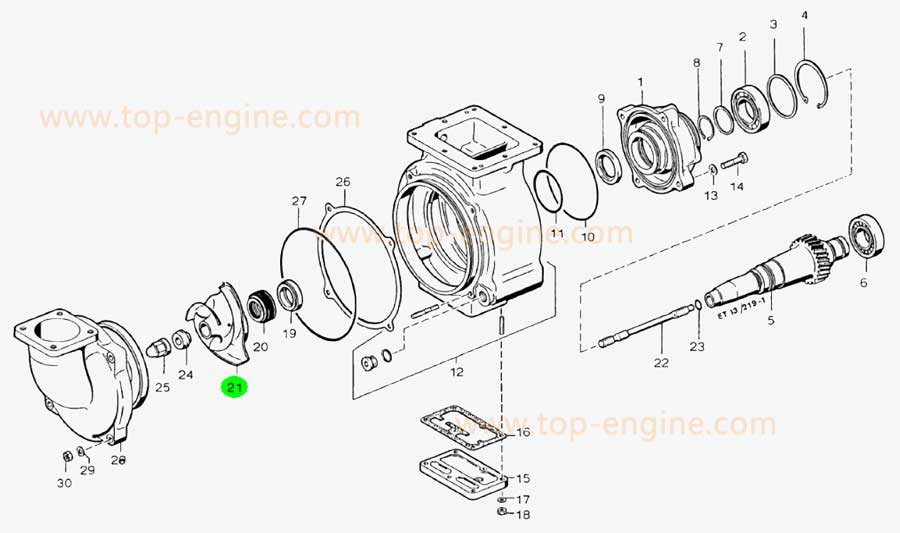

| C/N | Order No. | Description | Qty | Dimension |
| 000 | 5582000901 | SEAWATER PUMP | 001 | |
| 01 | 5582040019 | BEARING HOUSING | 001 | |
| 02 | 000625900178 | GROOVED BALL BEARIN | 001 | 6210 MA C3 |
| 03 | 5559900640 | ADJUSTING WASHER | 001 | |
| 03A | 5559900740 | ADJUSTING WASHER | 001 | |
| 03B | 5559900840 | ADJUSTING WASHER | 001 | |
| 03C | 5559900940 | ADJUSTING WASHER | 001 | |
| 03D | 5559901040 | ADJUSTING WASHER | 001 | |
| 03E | 5559901140 | ADJUSTING WASHER | 001 | |
| 03F | 5559901240 | ADJUSTING WASHER | 001 | |
| 04 | 000472090000 | SNAP RING | 001 | 90 X 3 |
| 05 | 5582000002 | DRIVE SHAFT | 001 | |
| 06 | 705100502035 | CYLINDRICAL ROLLER | 001 | |
| 07 | 5559901440 | ADJUSTING WASHER | 001 | |
| 07A | 5559901540 | ADJUSTING WASHER | 001 | |
| 07B | 5559901640 | ADJUSTING WASHER | 001 | |
| 07C | 5559901740 | ADJUSTING WASHER | 001 | |
| 07D | 5559901840 | ADJUSTING WASHER | 001 | |
| 07E | 5559901940 | ADJUSTING WASHER | 001 | |
| 07F | 5559902040 | ADJUSTING WASHER | 001 | |
| 08 | 000471050000 | SNAP RING | 001 | 50 X 2 |
| 09 | 0079978047 | SHAFT SEAL | 001 | |
| 10 | 700294160001 | O-RING | 001 | 160 X 5 |
| 11 | 700429083000 | O-RING | 001 | 83 X 5 |
| 12 | 5582000103 | PUMP HOUSING | 001 | |
| 13 | 000137012202 | SPRING WASHER | 004 | B 12 |
| 14 | 000931012114 | SCREW | 004 | M 12 X 45 |
| 15 | 5582040203 | COVER | 001 | |
| 16 | 5582031680 | GASKET | 001 | |
| 17 | 000137008203 | SPRING WASHER | 006 | B 8 |
| 18 | 000934008008 | HEX NUT | 006 | M 8 |
| 19Z | 0002040263 | COUNTERRING | 001 | |
| 19Z | 0002040479 | GAITER | 001 | |
| 20 | 0002040716 | ROTARY SEAL | 001 | |
| 21 | 5582040106 | IMPELLER | 001 | |
| 22 | 5509901019 | STRESS BOLT | 001 | |
| 23 | 0039977848 | O-RING | 001 | |
| 24 | 5502040063 | THRUST RING | 001 | |
| 25 | 5509900353 | NUT | 001 | |
| 26 | 5582040651 | SPACER RING | 001 | |
| 26A | 5582040251 | SPACER RING | 001 | |
| 26B | 5582040751 | SPACER RING | 001 | |
| 26C | 5582040851 | SPACER RING | 001 | |
| 27 | 700294230001 | O-RING | 001 | 230 X 5 |
| 28 | 5582040154 | INLET ELBOW | 001 | |
| 29 | 000137010202 | SPRING WASHER | 004 | B 10 |
| 30 | 000934010005 | HEX NUT | 004 | M 10 |
